Specifications
| Telescope Arm Angle | approx. 87 degrees |
|---|---|
| Jib Angle | approx. 165 degrees |
| Swivel Area | approx. 620 degrees |
| Working Height up to Jib | approx. 33m |
| Max. Extension Length including Mech. Extension | approx 44m |
| Max. Extension Length | approx. 42m |
| Body Weight | approx. 9600 kg |
| Basic Length | approx. 4.55m |
| Hook Speed | approx. 60m/min |
| Support Length | approx. 6.05m |
| Support Width | approx. 5.74m |

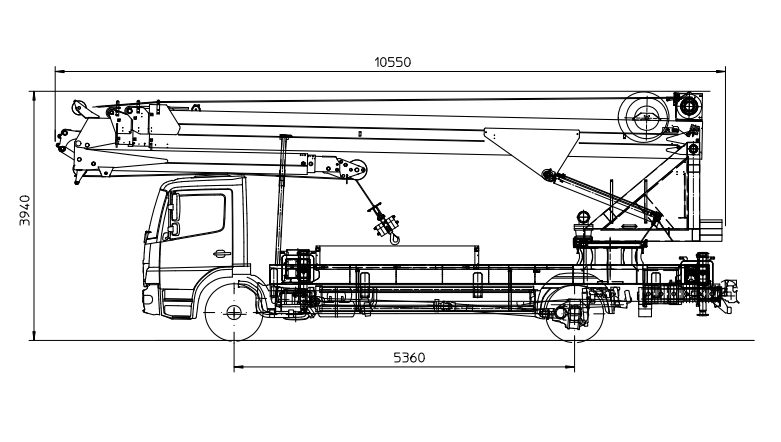

| Length Vehicle | approx. 10.55m |
| Width Vehicle | approx. 2.55m |

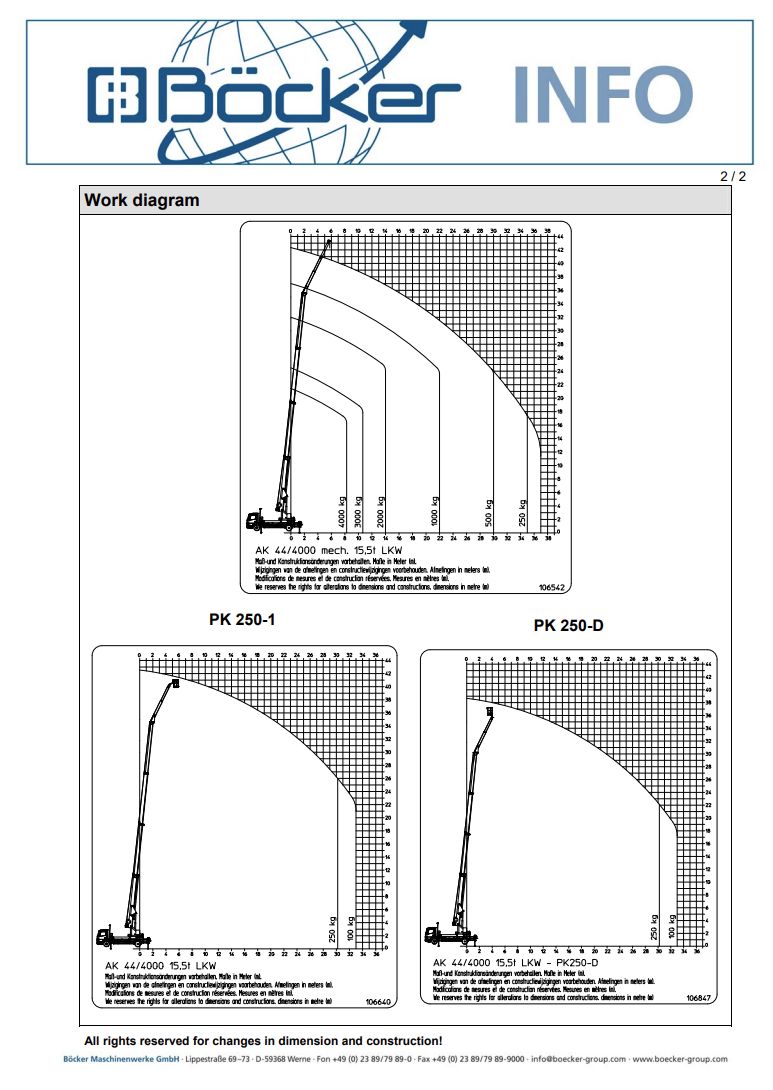

| Max Range of Crane Operation with 15,5t Truck | : |
| 500kg Lifting Capacity | approx. 30m |
| 1000kg Lifting Capacity | approx. 22m |
| 2000kg Lifting Capacity | approx. 14m |
| 4000kg Lifting Capacity | approx. 8.2m |
