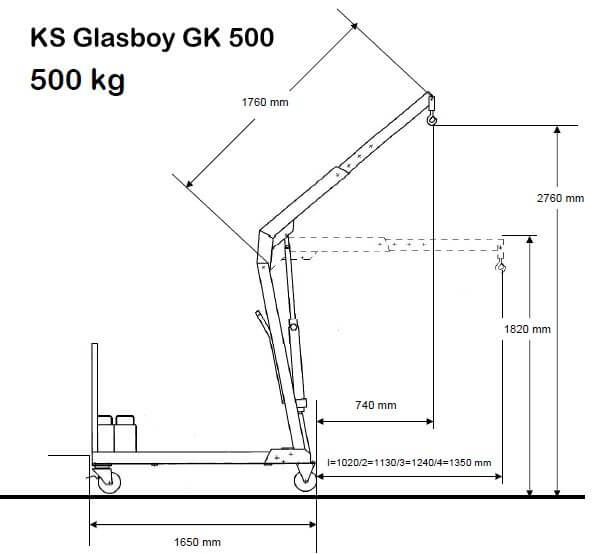

Specifications
| Load capacity max. | 500 kg |
|---|---|
| Load in front of the wheels max. | 250 - 500 kg |
| Outreach in front of the wheels max. | 1.35 m |
| Lifting height | 2.76 m |
| Elevation drive | manually |
| Device dimensions (WxLxH) | 0.76 x 1.65 x 1.7 m |
| Dead weight without counterweights | 135 kg |
| Counterweights | 26 pieces of 22 kg each |
| Standard equipment | incl. hook, rotatable 360 ° |
| Optional equipment | 4 suction unit hand pumps KS VacuPower |
