Load capacity max.500 kg
Load in front of the wheels max.250 - 500 kg
Outreach in front of the wheels max.1.35 m
Lifting height2.76 m
Elevation drivemanually

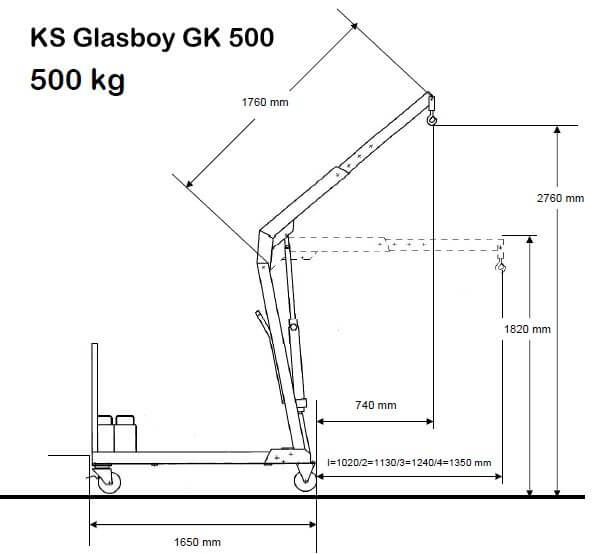

Device dimensions (WxLxH)0.76 x 1.65 x 1.7 m
Dead weight without counterweights135 kg
Counterweights26 pieces of 22 kg each
Standard equipmentincl. hook, rotatable 360 ​​°
Optional equipment4 suction unit hand pumps KS VacuPower
