Specifications
| Capacity | 4000 kg |
|---|---|
| Max. outreach | 13,7 m and 19,8 m with options |
| Maximum hoisting height | 16,3 m and 22 m with options |

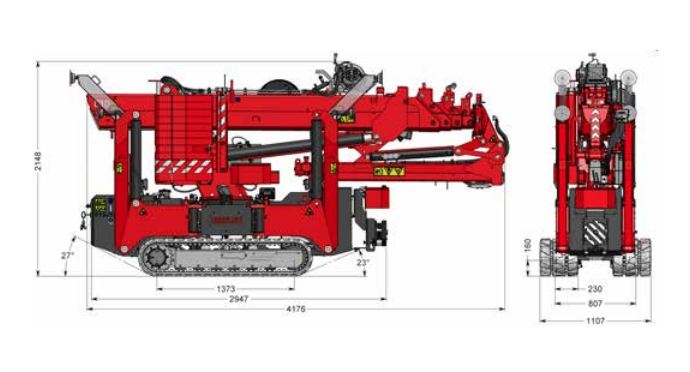

| Dimensions L x W x H | 3,93 m x 0.8 m x 1.97 m |
| Dimensions including winch and jib | 4.15 m x 0.8 m x 2,07 m |
| Total weight | 4400 kg and 4700kg incl. options |
| Boom system | Cylinder and chain system |
| Boom angle | -5 – 83 degrees |
| Slewing | 360 degrees |
| Drive system | via remote control: 1st gear: 1.1 km/h 2nd gear: 2,3 km/h 3th gear: 2,9 km/h |
| Engine | Yanmar 3 cylinder, 1500 rpm |
| Incline angle | 20 degrees |
| Ground pressure | 0.72kg/cm2 |
| Electric motor | 400 V |
| Fly jib length | 5m |
| Hoisting winch | 1000 kg, 2000 kg, 4000kg |
| Cable winch | 50 m long |
| Speed of hoisting with winch | 20,8m/min |
| Crawler tracks | non marking |

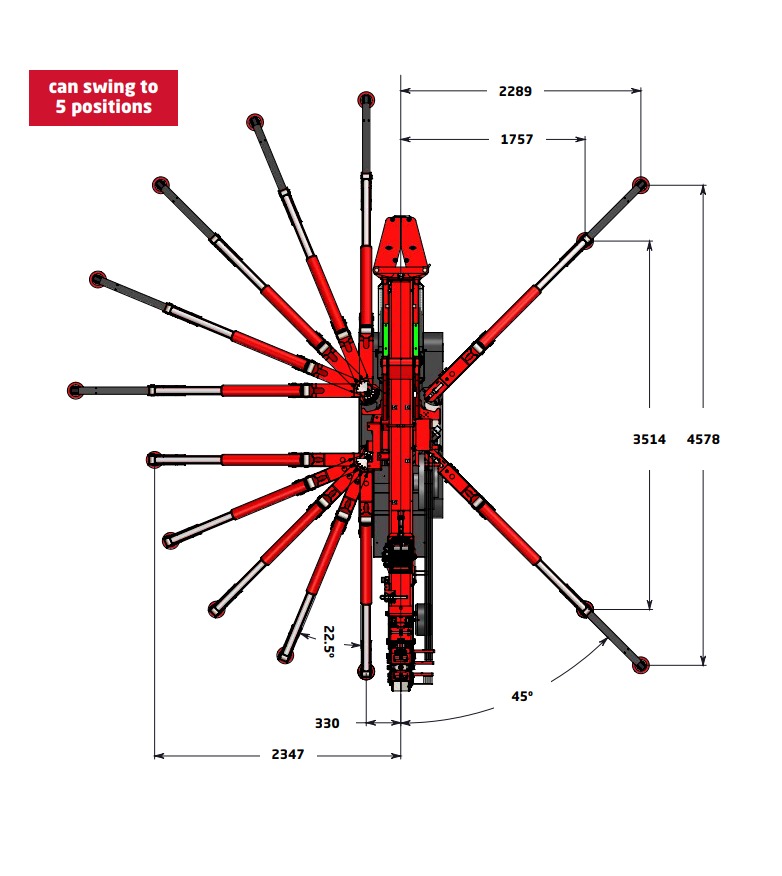

| Levelling jack monitoring | 5 positions |
| Hydraulic slewing | Stepless |
