Maeda LC785

View technical specifications

Top Features

  • Max Lifting Height - 16.35m
  • Working Radius - 14.52m
  • Capacity - 4.9t x 2.1m
  • Weight - 10250kg

or Call us on: 0844 770 6774


Maximum Capacity4.9t x 2.1m
Maximum Working radius14.52m x 200kg
Maximum Lifting height16.35m x 1400kg (20.3m x 430kg with Fly-Jib)

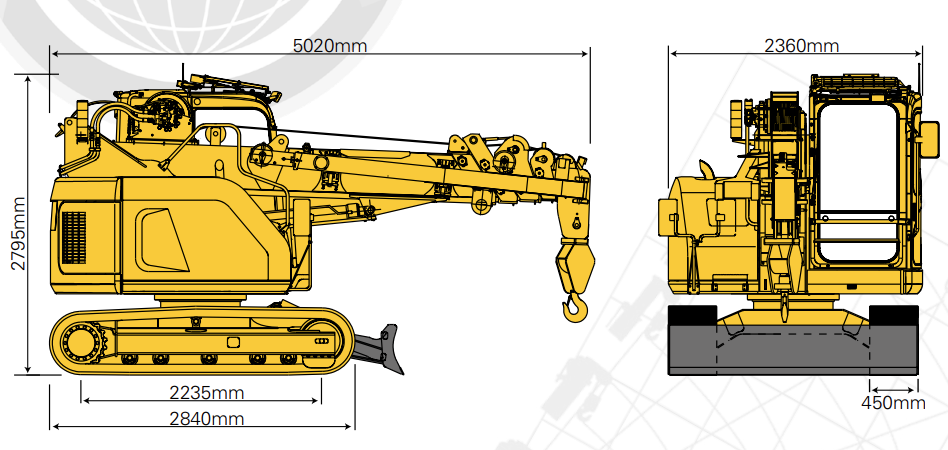

LC785 Dimensions5020mm x 2360mm x 2795mm
LC785 Weight10250kg (10420kg with Fly-Jib)
Hook block weight 90kg
Hook speed (Two speed)29/43m / min (4 falls, 4th layer)
Single line speed (Two speed)116/172m / min (4th layer)
Hoist rope IWRC 6 x Fi (29) Ø 10mm x 115m
Telescopic system Boom length4.63m - 15.63m
Telescopic system speed11m / 25 sec
Telescopic system Boom typeFully automatic 5 section pentagonal telescopic boom
Boom hoist angle / speed-2o to 80o / 13.5 sec
Slew angle / speed360o continuous / 2.2 rpm
DriveIndependent steering controls, hydraulic piston motor with built-in automatic brake, planet reduction gears, sprocket and crawler
Low Traction speed0 - 2.5km/h
High Traction speed0 - 4.5km/h
Traction speed Gradability20o
Traction speed Ground length x width2235mm x 450mm (Track dimensions)
Traction speed Ground pressure0.51 kgf / cm2 (0.52 kgf / cm2 with Fly-Jib)
Engine ModelKomatsu SAA4D95LE-5
Engine Type4 cylinder diesel, water cooled, direct injection
Engine Rated output41.0kW / 1950 rpm
Engine Starting methodElectric
Engine Fuel tank capacityDiesel / 140L
Safe load indicatorMade specifically for Maeda Mini Cranes with a fully programmable working envelope
Standard equipmentMoment limiter, steel tracks, overwind protection, hydraulic safety valves, level, EMO switch, LED working status lamp, air conditioning, 4-fall / 2-fall hook block, working light, hour-meter, tilt alarm, data logger, blade with interlock system.
Optional equipmentFly-Jib Single fall hook Rubber pads (black or white) weight 280kg Rear view camera Spark arrestor Radio remote control

Working Range
