Maeda MC305

View technical specifications

Top Features

  • Capacity: 2.98t x 2.5m
  • Max lifting height: 12.52m
  • Max working radius: 12.16m x 0.26t
  • Machine weight: 3,900kg

or Call us on: 0844 770 6774

Specifications

Crane Capacity2.98t x 2.5m
Max. Working Radius12.16m x 0.26t
Max. Lifting Height12.52m
Max. Reach Below Ground-16.09m (4 falls)
Outrigger Max. Extended Width(Lateral) 4,888mm x (Front) 4,504mm x (Rear) 4,396mm
Travel Speed0-2.8km/h
Travel Ground Pressure (MC305CRM-2)36.3kpa [0.37kgf/cm2]
Travel Ground Pressure (MC305CRME-2)37.3kpa [0.38kgf/cm2]
EngineYANMAR 3TNV76 / Diesel
Engine Rated Output15.2kw/2,500rpm
Electric Motor5.5kw, 4P 380V
Dimensions4,285mm (L) x 1,280mm (W) x 1,695mm (H)
Machine Weight3,900kg (4,080kg with electric motor)

Working Range

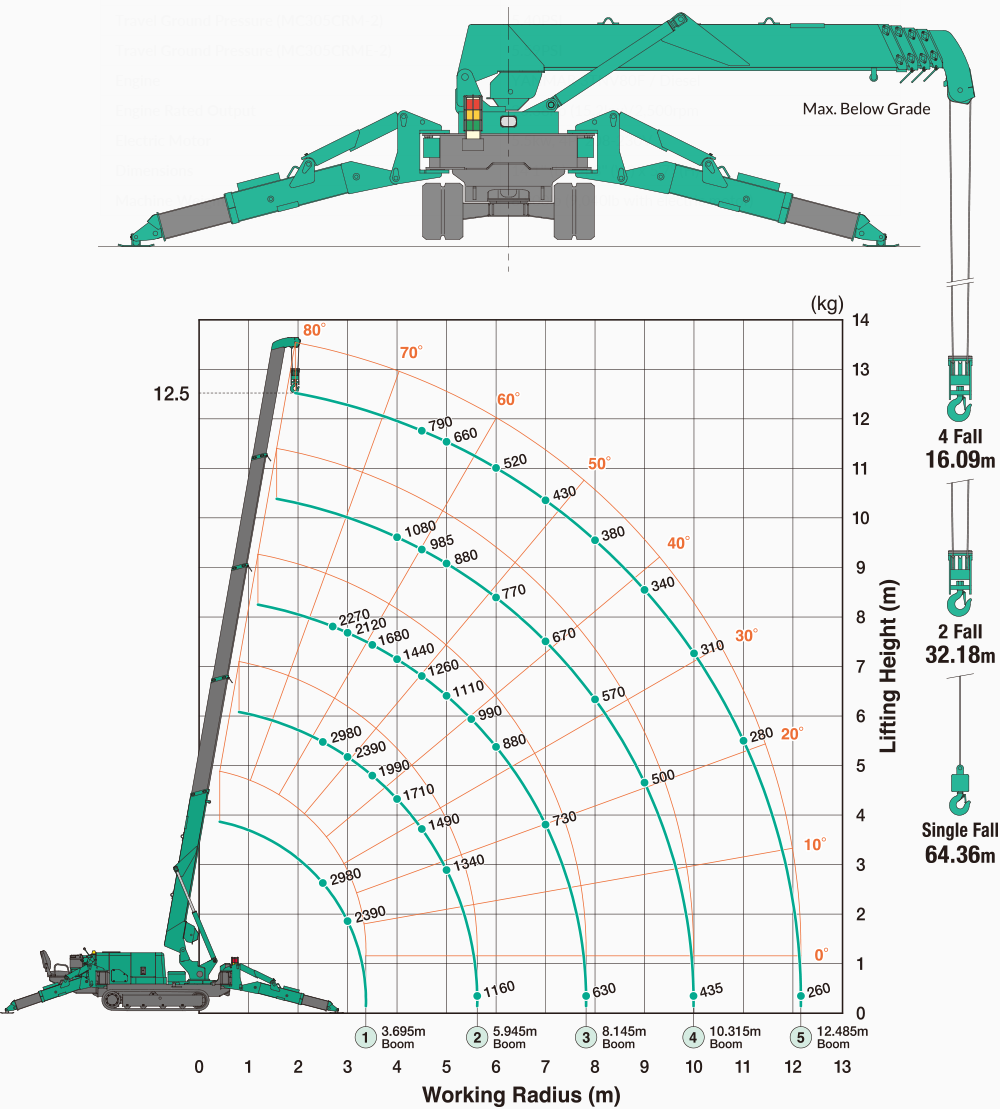

Maeda MC305 Outriggers Position : Max

Maeda MC305 Outriggers Position : Mid

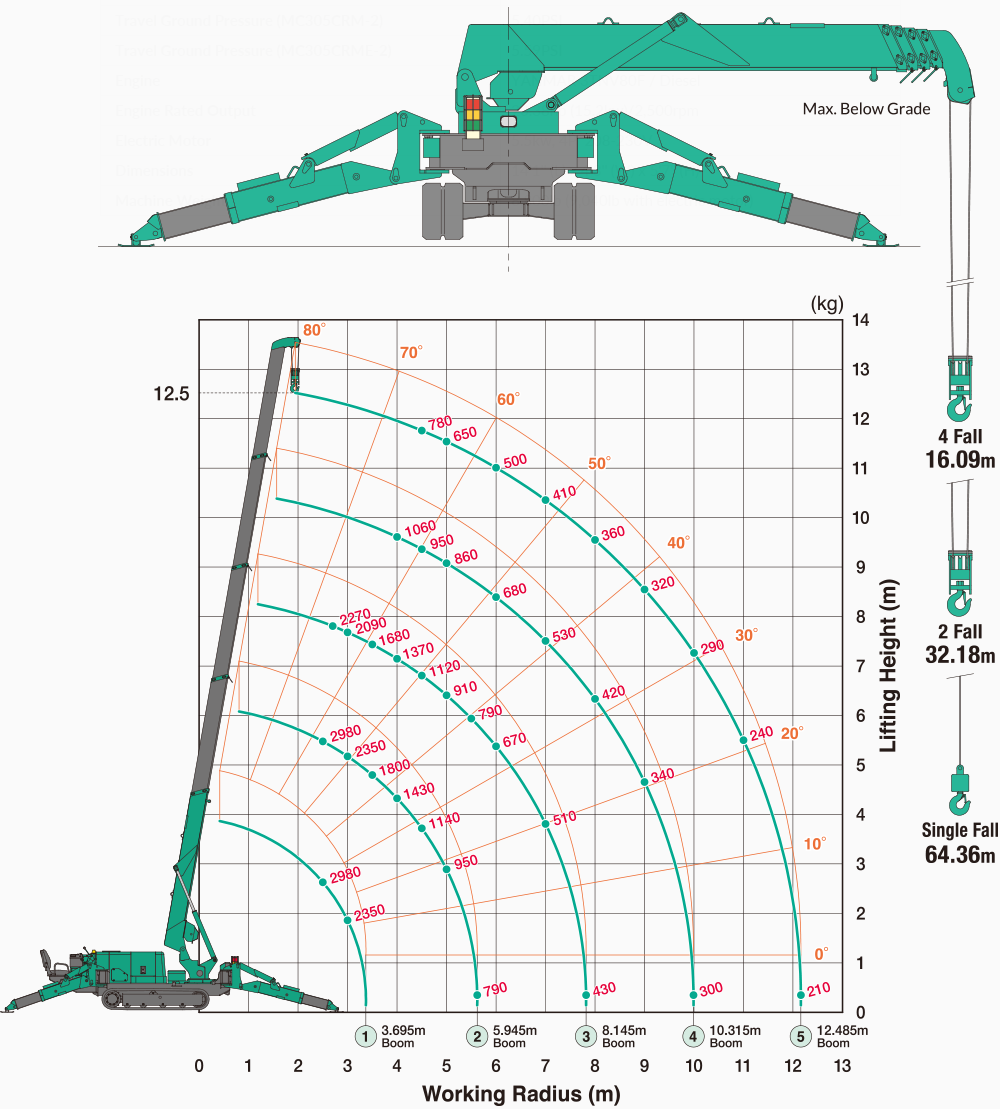

Maeda MC305 Outriggers Position : Min

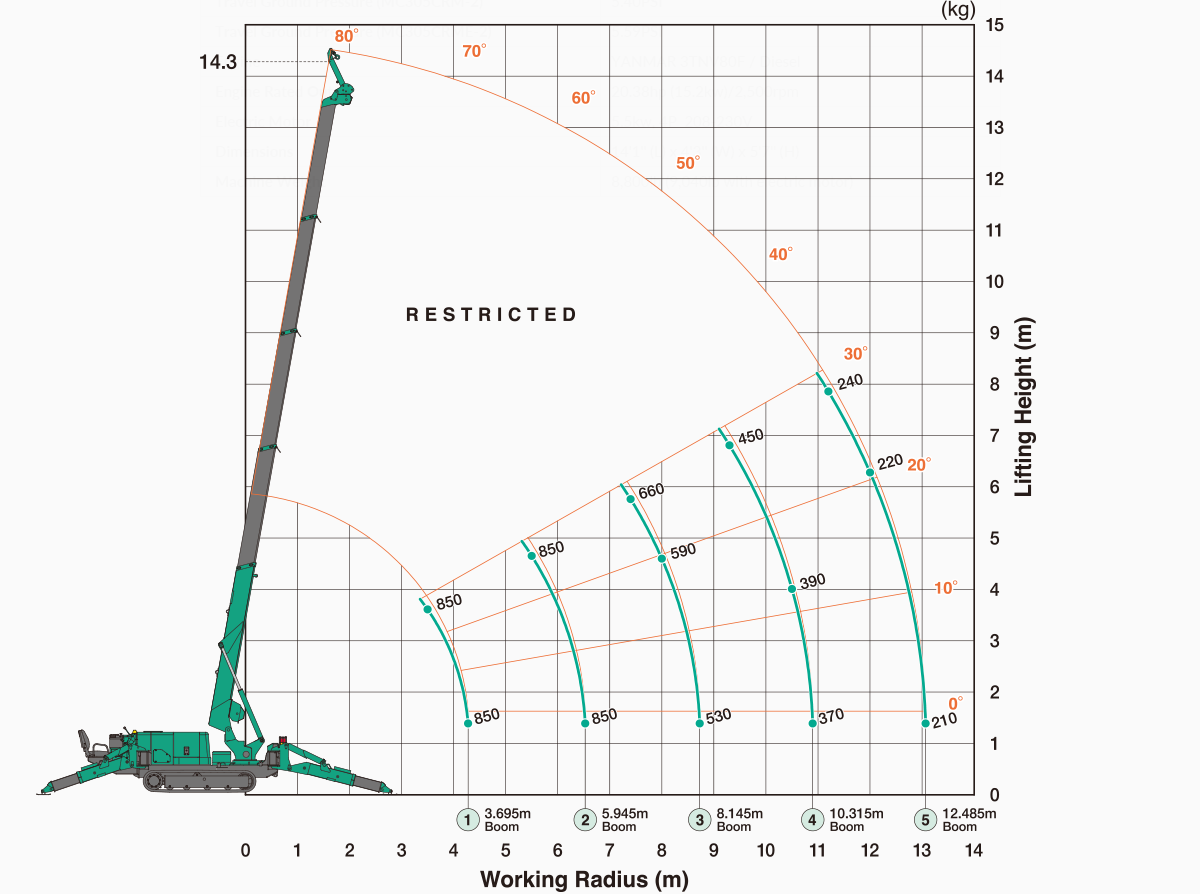

Maeda MC305 : 850kg Searcher Hook Offset Position SH1 (Outriggers Position : Max)

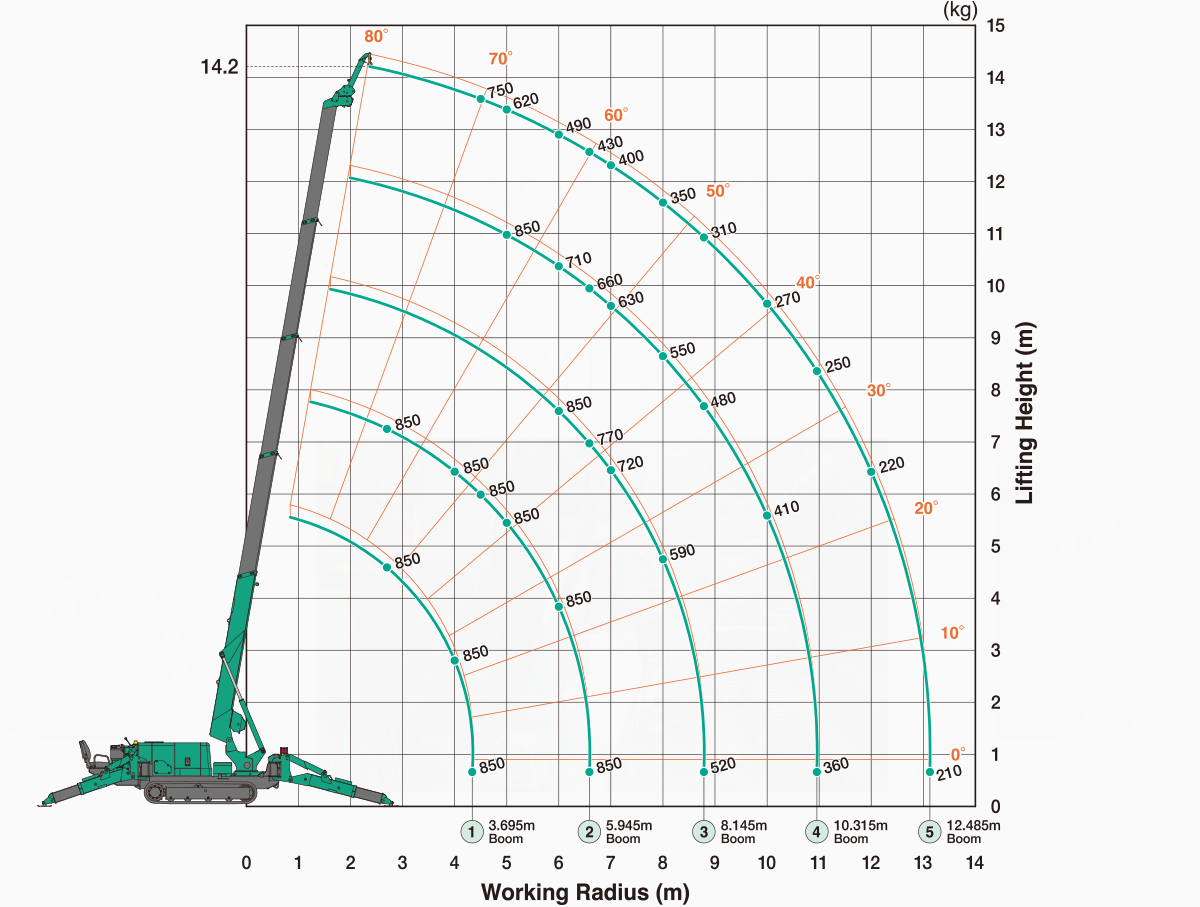

Maeda MC305 : 850kg Searcher Hook Offset Position SH2 (Outriggers Position : Max)

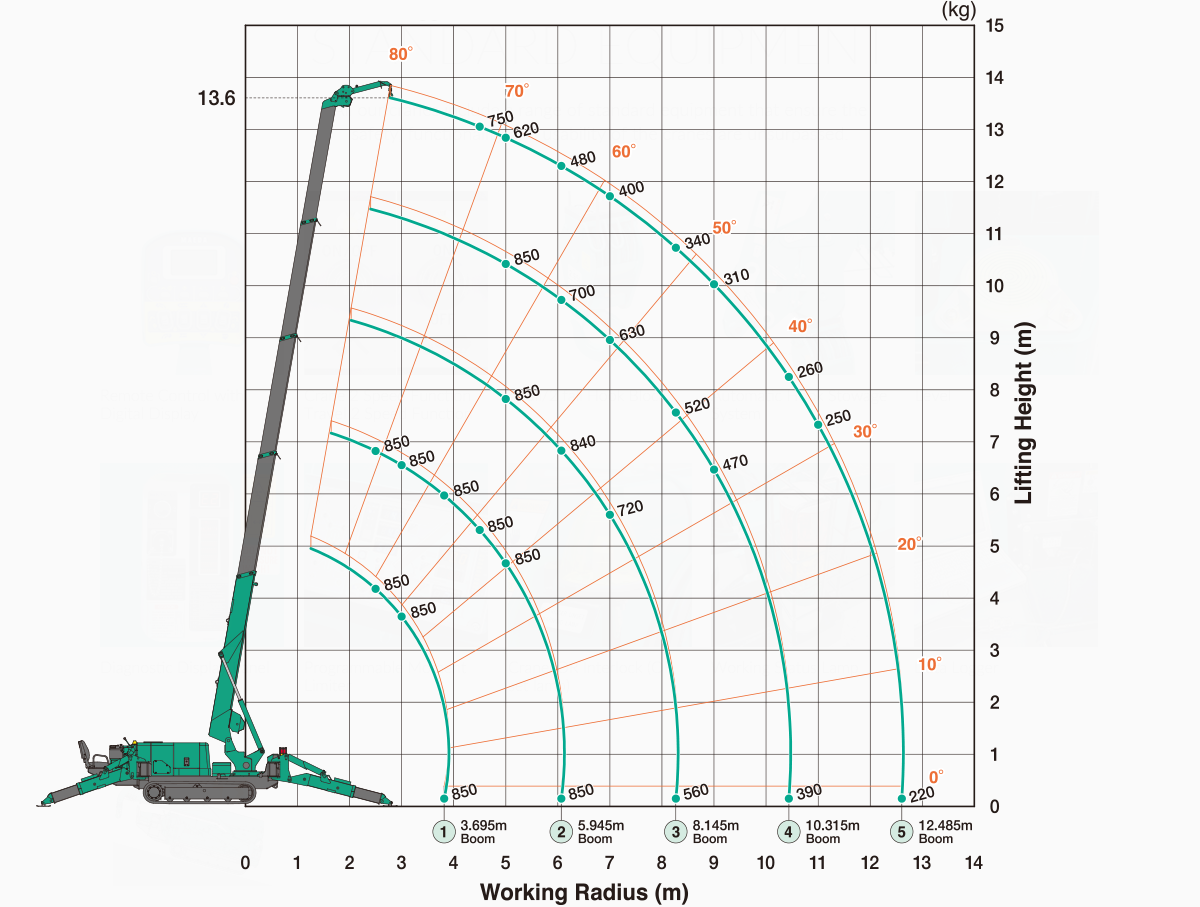

Maeda MC305 : 850kg Searcher Hook Offset Position SH3 (Outriggers Position : Max)

Dimensions

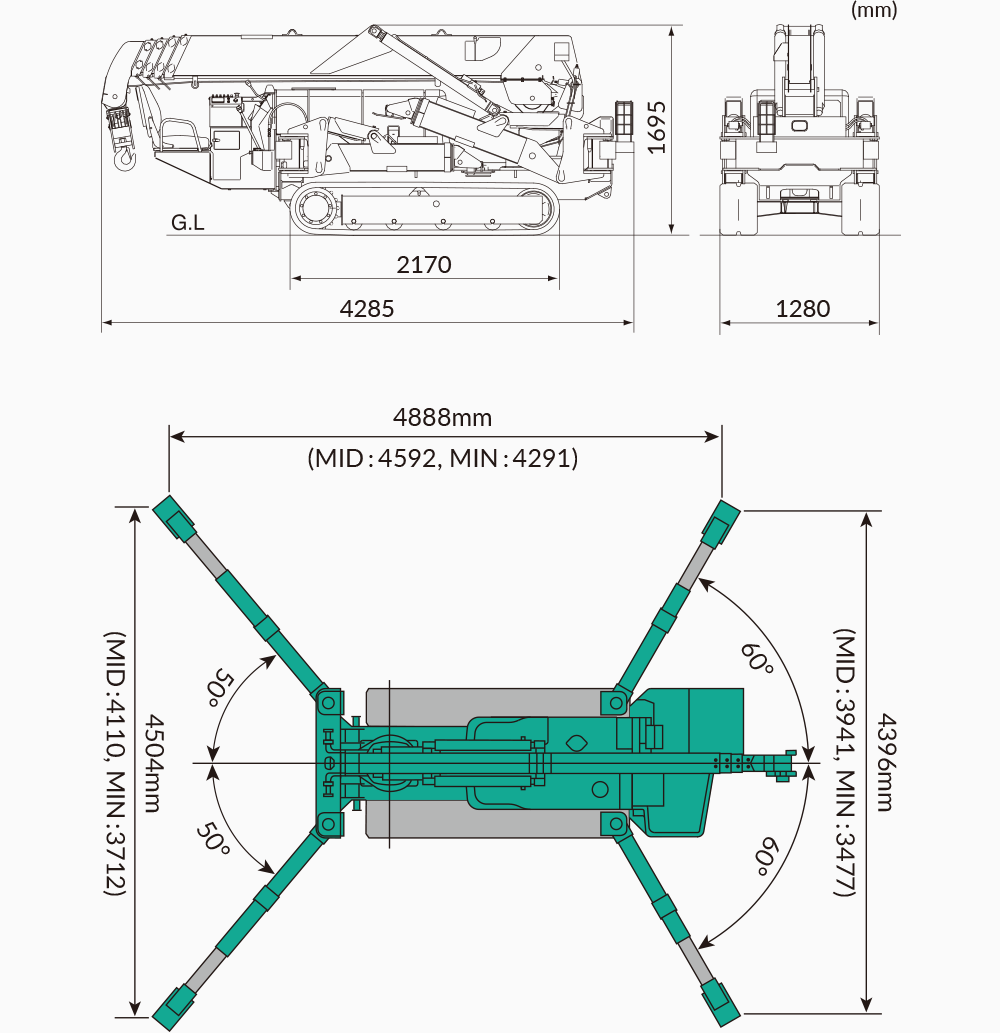

Maeda MC305 Dimensions
