Maeda MC815

View technical specifications

Top Features

  • Capacity : 8.09t x 2.4m
  • Max lifting height: 19.6m
  • Max working radius: 18.8m x 0.34t
  • Machine weight: 9,460kg

or Call us on: 0844 770 6774


Crane Capacity8.09t x 2.4m
Max. Working Radius18.8m x 0.34t (0.44t at P-Mode)
Max.Lifting Height19.6m (25.5m with fly jib)
Max. Reach Below Ground-21.0m (6 falls) /-126.0m (single fall)
Outrigger Max.Extended Width(Lateral) 6,770mm x (Front) 6,300mm x (Rear) 6,520mm
Pick & Carry Capacity1,000kg
Travel Ground Pressure (MC815CRM)52.0kpa [0.53kgf/m2]
Travel Ground Pressure (MC815CRME)53.0kpa [0.54kgf/m2]
EngineYANMAR 4TNV88C-NMB / Diesel
Engine Rated Output30.5kw/2,500rpm
Electric Motor15kw, 4P 380V
Dimensions5,900mm (L) x 1,670mm (W) x 2,490mm (H)
Machine Weight9,460kg (9,700kg with electric motor)

Working Range

Maeda MC815 Working Range Chart

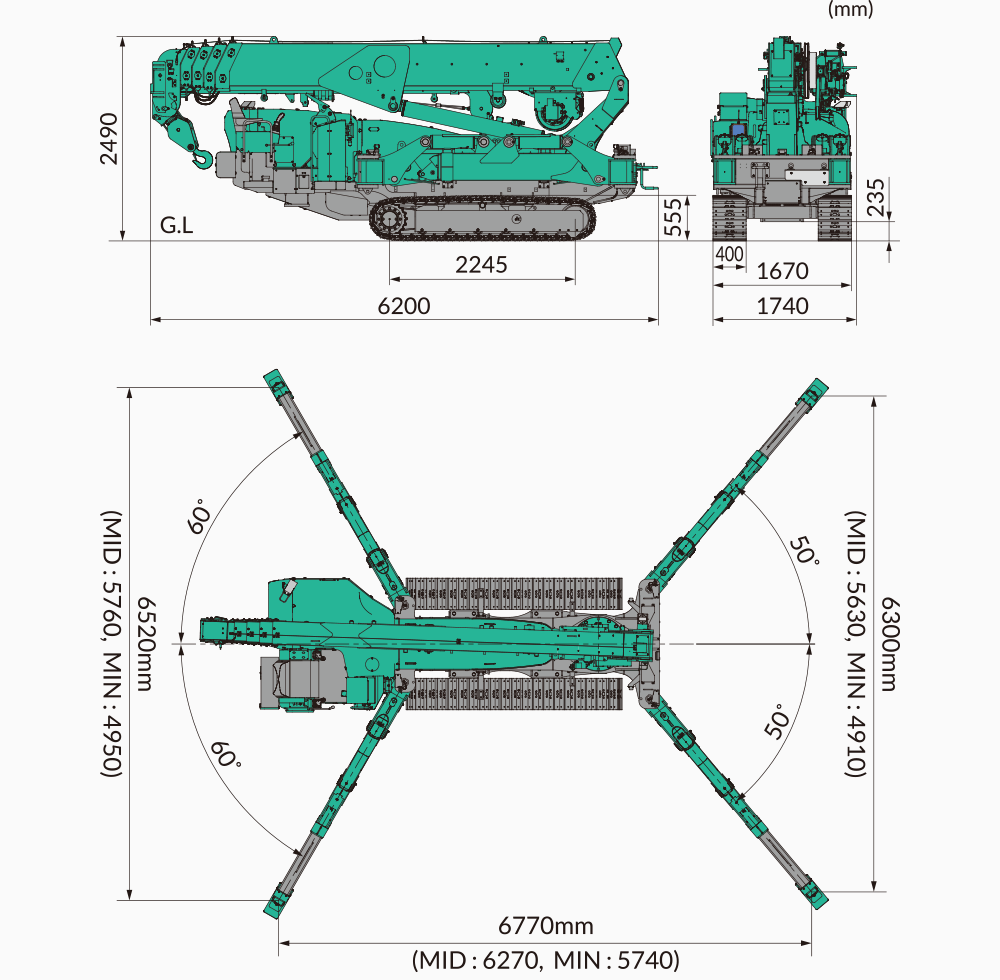

Maeda MC815 Dimensions
