Specifications
| Capacity | 2.98t x 1.8m / 1.0tx.2m with jib |
|---|---|
| Max. Working Radius | 14.3m (9.4m with main boom only) |
| Max. Lifting Height | 16.95m (12m with main boom only) |

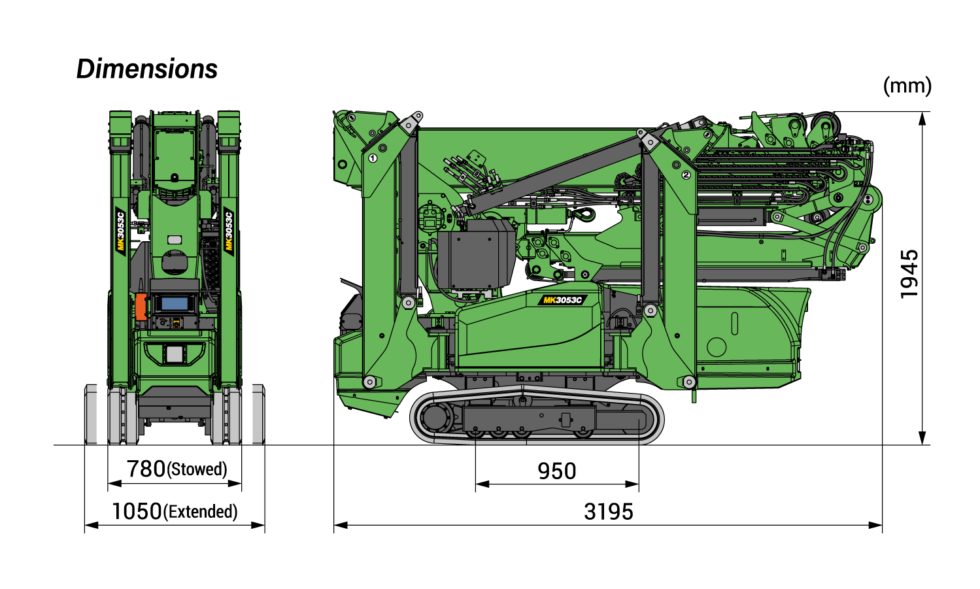

| Dimensions | 3195mmx780mmx1945mm |
| Weight Main Unit | 2880kg |
| Max. Hook Speed | 39.8 m/min. (4th layer, single fall) |
| Hoist rope | IWRC 6 x WS (26) Ø 8mm x 62m |
| Telescopic system | Boom length - 3.1 ~ 10.3 m Telescoping speed - 7.2 m / 42.3 sec. Boom type - Fully automatic 5 section pentagonal telescopic boom 3 stage luffing and extending knuckle boom |
| Boom hoist system | 0º ~ 85º / 26 sec. |
| Slew system | 360º / 1.4 rpm |
| Travel Speed | Travel speed - 0 -2.4 km/h |
| Max Outriggers | (Length) 4460 mm x (Front) 4560 mm x (Rear) 4500 mm |
| Travel Ground Pressure | 0.85 kgf /cm2 |
