P1106

View technical specifications

Top Features

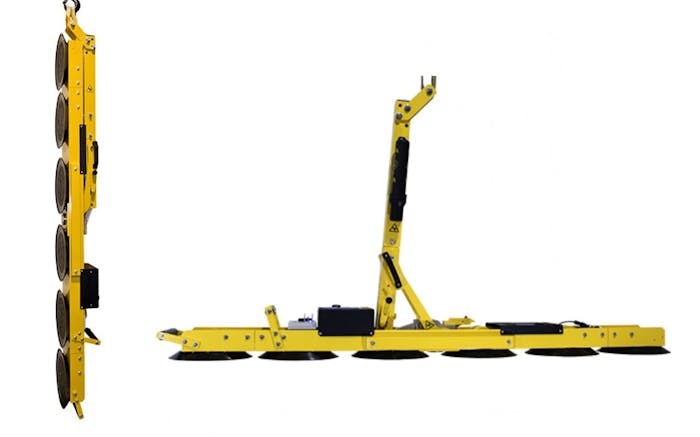

  • 6 pad in-line vacuum lifter with 2 removable pads
  • 180° rotation
  • 90° tilting function
  • 500kg lifting capacity

or Call us on: 0844 770 6774

Specifications

Maximum Load Capacity500 kg (with 6 pads in use) / 320 kg (with 4 pads in use)
Load MovementManual rotation, 180° edgewise, with locking at each 1/4 turn. Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position.
Standard Pad SpreadWith 6 pads in use: 2,010 mm x 300 mm / With 4 pads in use: 1,370 mm x 300 mm
Number/Size of Pads6 / 280 mm diameter, lipped
Lifter Weight 59 kg
Standard Operating Power12 volts DC, 4.5 amps
Profile Thickness200 mm
