Specifications
| Lifting Capacity. arm in/out | 280/160kg |
|---|---|
| Lifting Height | 2,750 mm / 108 in |
| Extension of arm | 500 mm / 20 in |
| Tip from horizontal | 50o back / 50o fwd |
| Side Shift | 100 mm / 4 in |
| Charging voltage | 230v / 110v |
| Charging time | approx. 8 hours |
| Battery (2x12v) | 2x62Ah |
| Running Period | Up to 10 hours |
| Rear-wheel drive | 700 W DC |
| Brake | Electro-magnetic |
| Suction Pads | 4 x Ø300mm / 4 x Ø12 in |

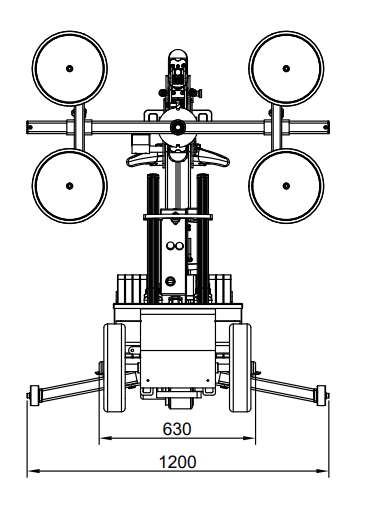

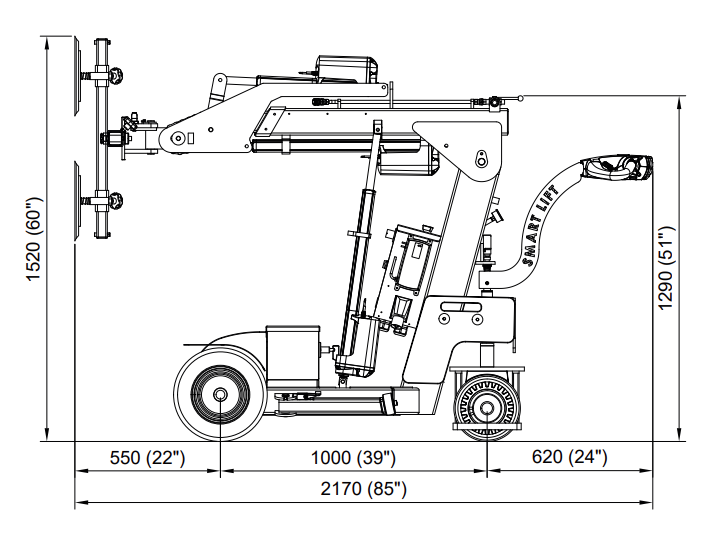

| L x W x H | 2170 x 630 x 1330 mm 85 x 25 x 52 in |
| Curb weight | 480 kg / 1,060 lbs |
