Smartlift SL608

View technical specifications

Top Features

  • LIFTS UP TO 608 KG / 1,340 LBS.
  • The SL608 Outdoor series offers more power and more options.
  • Choose longer reach and a rotating yoke for more flexibility during installation.
  • Handle the rotation of large elements with maximum precision in three dimensions.

or Call us on: 0844 770 6774

Specifications

ModelSL 608 Outdoor
Lifting cap. arm in/out608/280 kg - 1,340/620 lbs
Lifting height3,400 mm/134 in.
Extension of arm700 mm/27 in.
Tip from horizontal40o back / 100o fwd.
Side shift100 mm / 4 in.
Charging voltage230 V / 110V
Charging timeApprox. 8 hrs.
Running periodUp to 8 hrs.
Front-wheel drive1200 W AC
Suction pads4 x Ø400mm / 4 x Ø16 in.
Width830 mm / 33 in.
Curb weight850 kg / 1,875 lbs.
ClassIP 65

Working Range

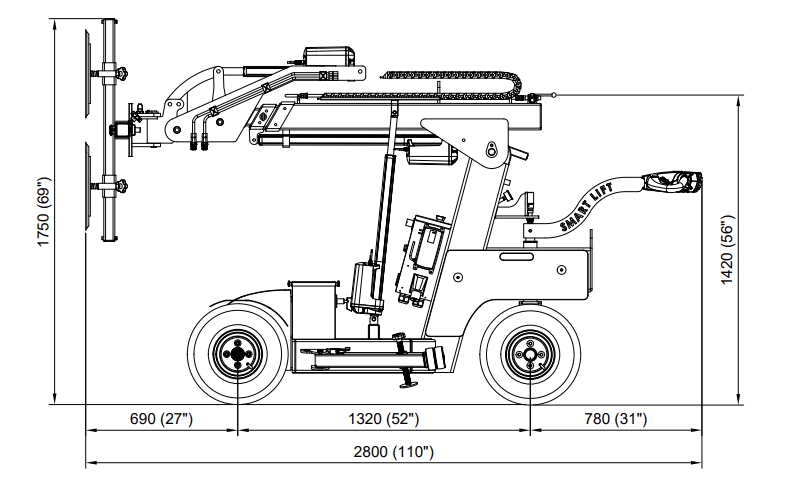

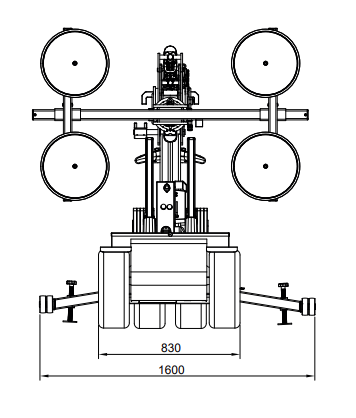

Dimensions
