Unic URW706

View technical specifications

Top Features

  • Max lifting height 19.5m (22.7m with second stage fly jib)
  • Max boom length 19.2m
  • Weight of 8310kg (with searcher hook and fly jib attached)

or Call us on: 0844 770 6774

Specifications

Crane Capacity6.0t x 3.0m
Max working radius18.6m
Max lifting height19.5m (22.7m with second stage manual fly jib) 19.5m (25.2m with hydraulic fly jib, 25.9m with fixed hook)
Rope lengthmax: 23.75m (4 fall), 49.5m (2 fall), 101m (1 fall)
Weightunladen: 7920kg + 160kg (8080kg with electric option) + 230kg (8310kg with searcher hook and fly jib attached)
Hook Speed 11m/min (with 5 layers and 4 falls)
Telescopic systemboom length: 4.80 - 19.20m telescoping speed: 14.4m/52 seconds boom type: 6 section hydraulically telescoping boom, hexagonal box construction
Derricking angle/speed0 - 80˚/16.0 seconds
Slewing angle/speed360˚ (continuous) 2.5min rpm
Traction systemdrive: hydrostatic 2-speed, stepless forward and reverse travel speed: 0 - 2.9km/h gradeability: ± 20˚ (vertical) 20° (traverse) track ground length: 2240mm track ground pressure:43.6kPa (0.44kg/cm²) track width: 400mm
Enginemanufacturer: Mitsubishi fuel: diesel (electric dual power option) maximum output: 23.5kW (32.0PS) / 2500min rpm starting method: electric tank capacity: 74 litres
Electric motorpower:7.5kW voltage: 400v AC 50/60hz
Standard equipmentcomputer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation
Optional equipment1 fall hook block, 2 fall hook block, mains electric dual power (400v), low marking tracks, slew limitation, searcher hook 800kg, fly jib 800kg with single part line, 800kg capacity hydraulic fly jib (706-2), radio remote control with feedback display, data logging

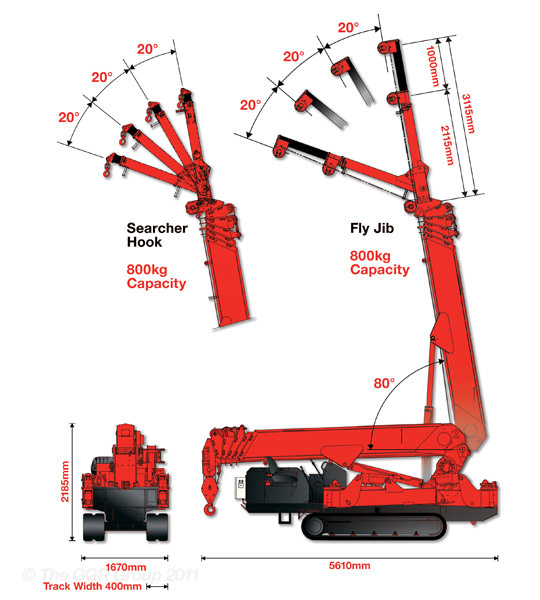

Dimensions
